3 point mounted middle transmission European styple tractor mounted rotary tiller

The 1GNK series rotary tiller can work both on dry field and paddy field, which save much time, labour and money.

The 1GNK series rotary tiller adopt thicker frame and bigger gearbox; we also adopt panel hitch to make sure more strong 3 point hitch. It is specially for European market.

This rotary tiller can be used in wet and dry land. It is also an ideal implement for uprooting the sugarcane stubbles. Chops and mixes the roots into the soil and make it as manure to the soil. The rotary tiller with universal 3 point linkage fits 20-90hp agricultural tractors.

The 1GNK series rotary tiller can work both on dry field and paddy field, which save much time, labour and money etc.



Product Feature:

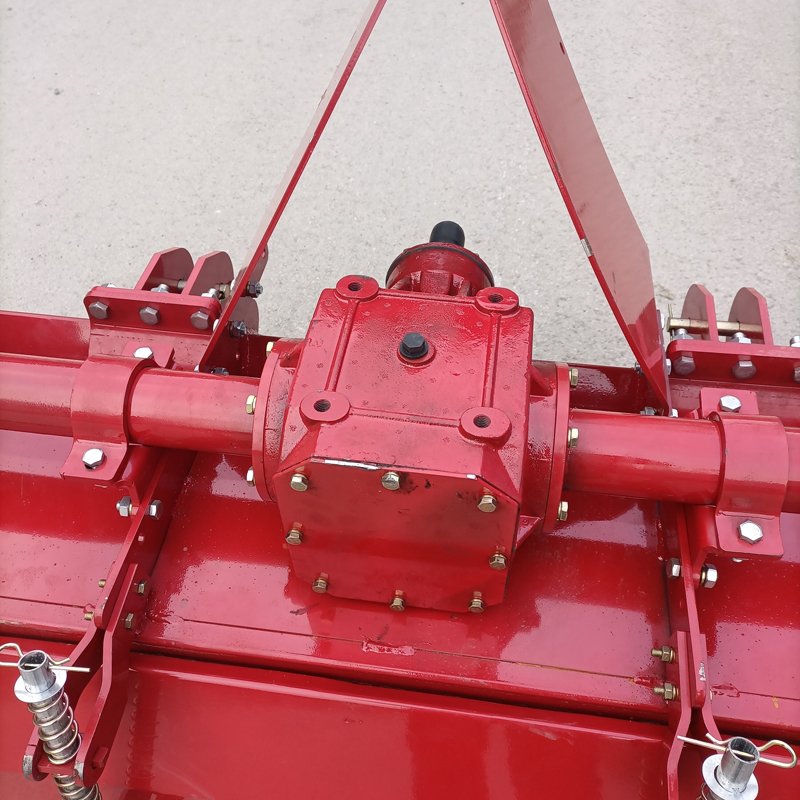

  1. Gearbox is made of casting iron. Material performance is better. Not easy broken.
  2. The modified structure is more reasonable,connection is more reliable.
  3. The lower hanging seat plate is strengthened,the suspension plate shape is not easy to deform.
  4. The sprocket tension-er requires manual adjustment, it becomes simple and reliable.
  5. The back barrier adds two side plates,to prevent the mud splashed out more efficiency.
  6. Side chain drive.
  7. Packed in steel crate.
  8. OEM acceptable.
  9. Color as per customers’ requirement.
Rotary Tiller 1
Rotary Tiller 1
Rotary Tiller 1
Rotary Tiller 1
Rotary Tiller 2
Rotary Tiller 2
Rotary Tiller 3
Rotary Tiller 3
Model Working

width(cm)

Blades shaft

speed (rpm)

Number of blades

( can select)

Tilling

depth(cm)

Fitted

power(hp)

Net  weight (kg) Gross    weight(kg) Package size:   (cm*cm*cm)
1GNK-120 120 210 24 36 8–15 25-30 175 210 145*73*73
1GNK-130 130 210 28 42 8–15 30-35 185 220 155*73*73
1GNK-140 140 210 28 42 8–15 30-35 200 235 165*73*73
1GNK-150 150 210 32 48 8–15 35-40 210 250 175*73*73
1GNK-160 160 210 32 48 8–15 40-45 240 290 185*73*73
1GNK-170 170 210 36 54 8–15 45-50 260 315 195*73*73
1GNK-180 180 210 36 54 8–15 50-55 290 350 205*73*73
1GNK-200 200 210 40 60 8–15 60-75 335 375 225*73*73
1GNK-230 230 210 44 64 8–15 70-95 370 420 255*73*73
