Farm Tractor rotary tiller agricultural tilliage machine

1GQN series rotary tiller with middle gear transmission, it can be mounted with the tractor 12-120hp.

Yucheng Industry Company Limited, which is located in Qingdao City Shandong Province China, is a professional manufacturer and exporter that is concerned with design, development and production of farm machinery.


1GQN series rotary tiller with middle gear transmission, it can be mounted with the tractor 12-120hp. We can’t see the wheel tracks on the soil after it worked. The quality of rotary tiller is good and the function very well. It is suited to dry land and paddy field. It can save time, labour and money etc. The 1GQN series rotary tiller are ideal for homeowner landscaping, small nurseries, gardens, small hobby farms, or medium-duty residential use.

All spare parts on rotary tiller, for example, knives, gearbox and gears are produced by ourselves, so parts replacement is very convenient for customers.

Moreover, we can also produce side gear box rotary tiller, and produce according to customer’s drawing or samples, support OEM.



  1. Perfect for cultivating aerating, and stirring up soil for gardens, food plots and other tillage needs;
  2. Available in 90~300cm sizes;
  3. Units work efficiently on 25-50 HP tractors (depending on tiller size)
  4. 1GQN rotary tillers are sized right for subcompact tractors and are designed to till soil for seedbed preparation.

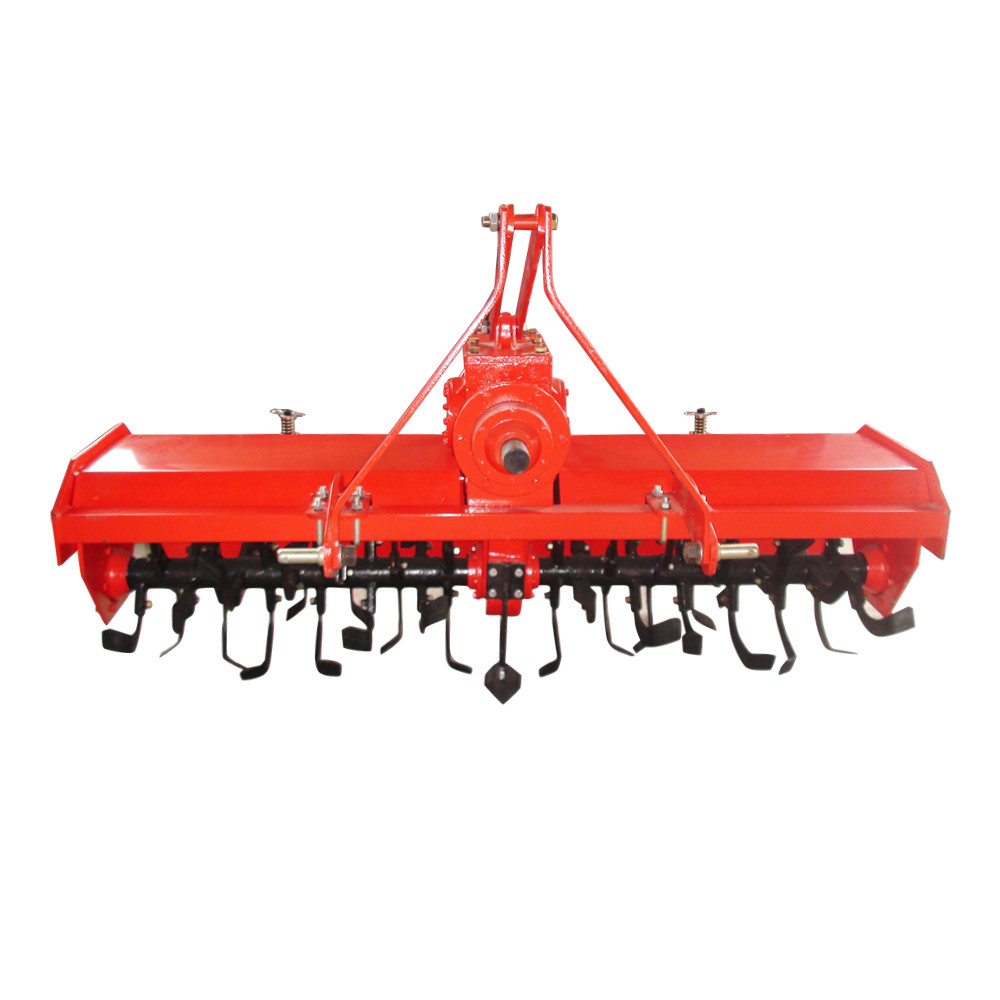

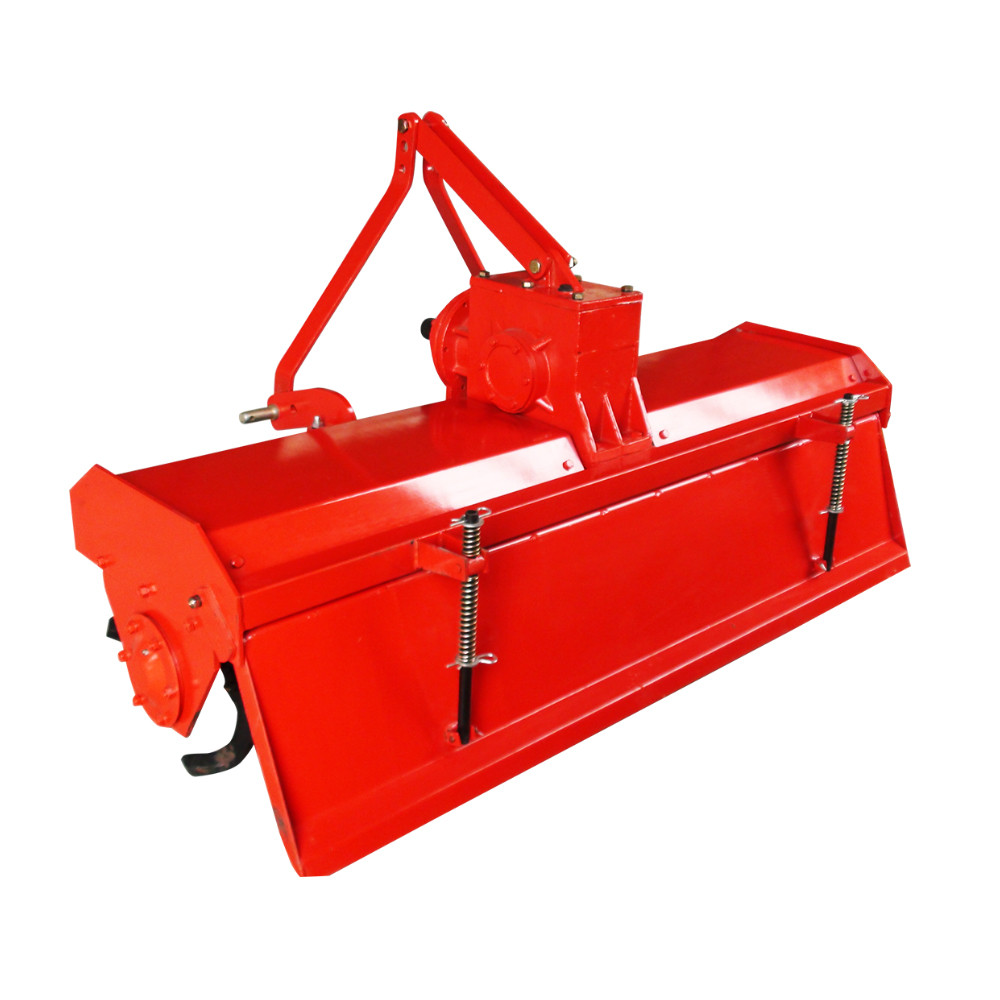

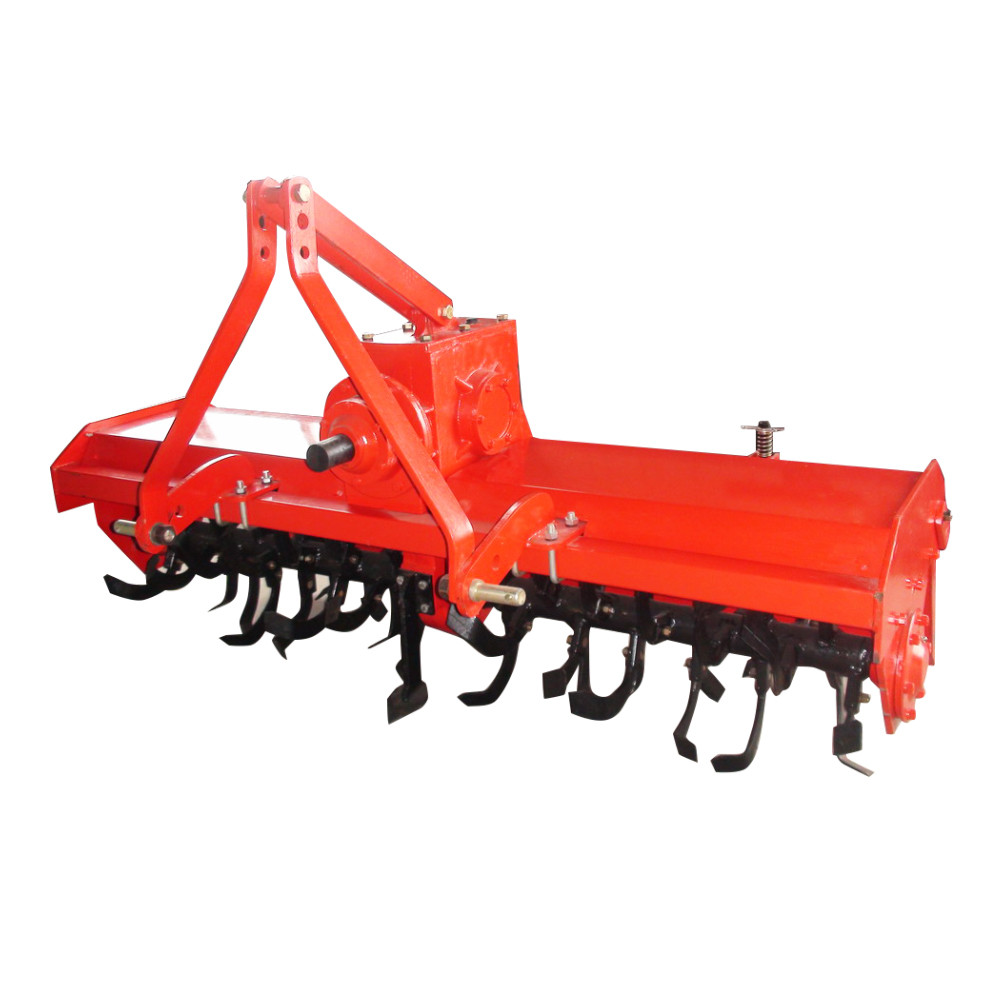

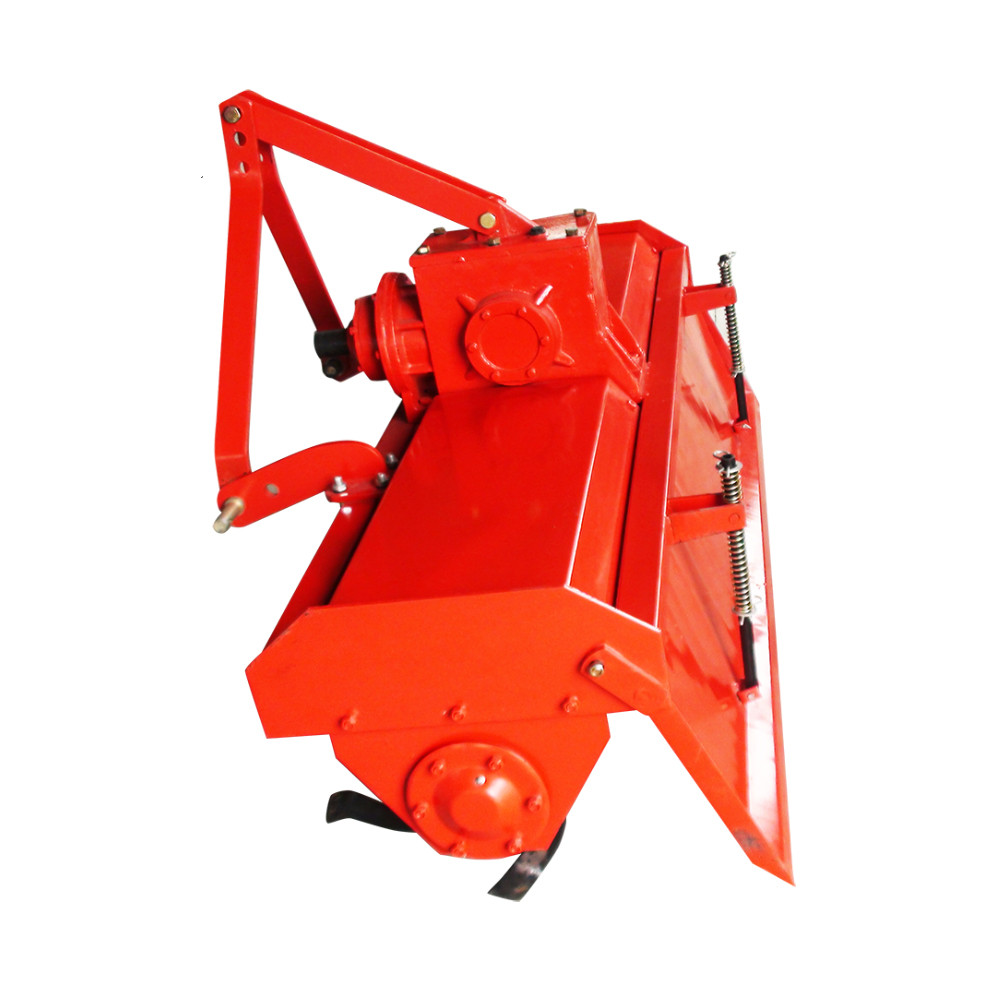

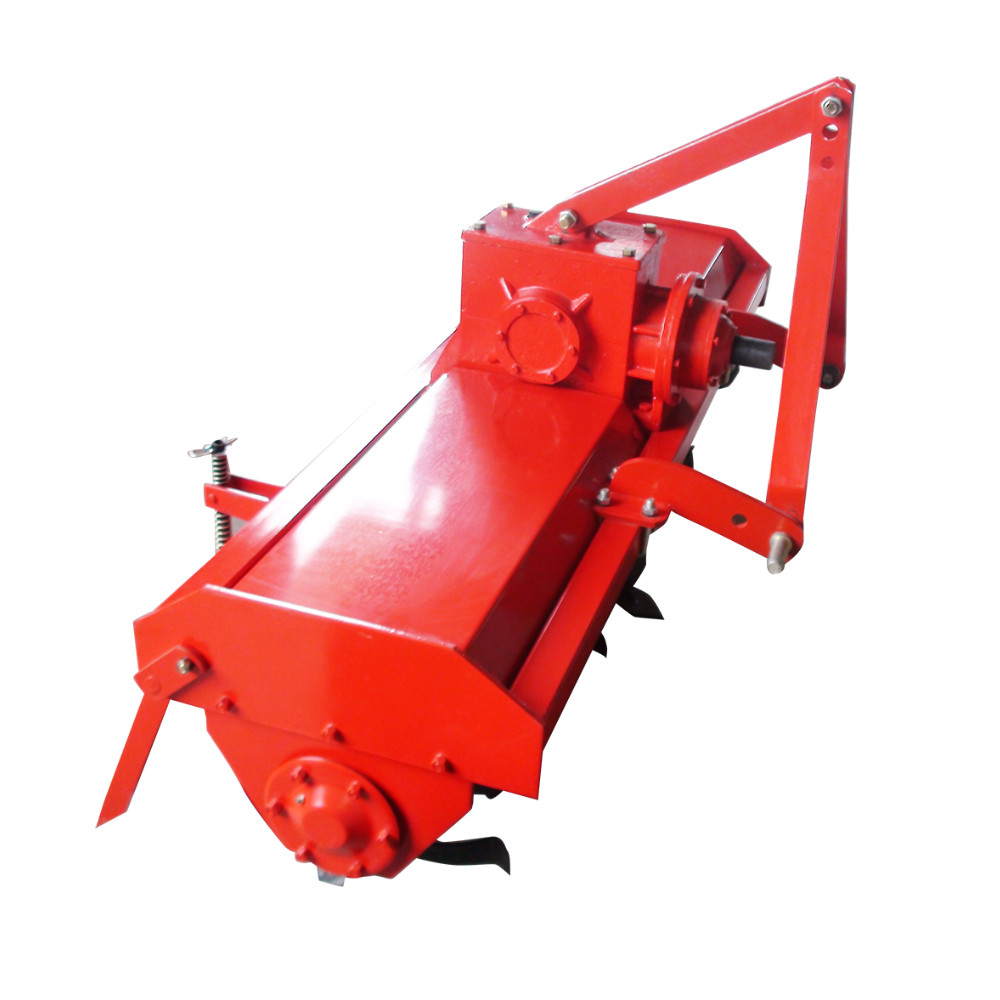

Detailed picture:

Linkage type: Three point mounted


linkage type
linkage type

Package: Iron frame, or according to customer’s requirements.

package 1
package 1


Model 1GQN-100 1GQN-120 1GQN-125 1GQN-140 1GQN-150 1GQN-160 1GQN-180 1GQN-200 1GQN-220 1GQN-250 1GQN-300
 Working width(mm) 1000 1200 1250 1400 1500 1600 1800 2000 2200 2500 3000
Working depth(mm) dry land 80-140 120-180 160-180
water land 100-160 140-200 160-200
 No. of  blade (pc) 22 26 26 30 34 38 50 54 58 62 66
 Weight(kg) 200 215 220 230 240 250 415 420 460 480 540
Linkage Three point mounted
Matched power(hp) 12–20 15-18 18-20 20-25 25-30 30-40 50-55 55-75 60-80 75-100 80-120
