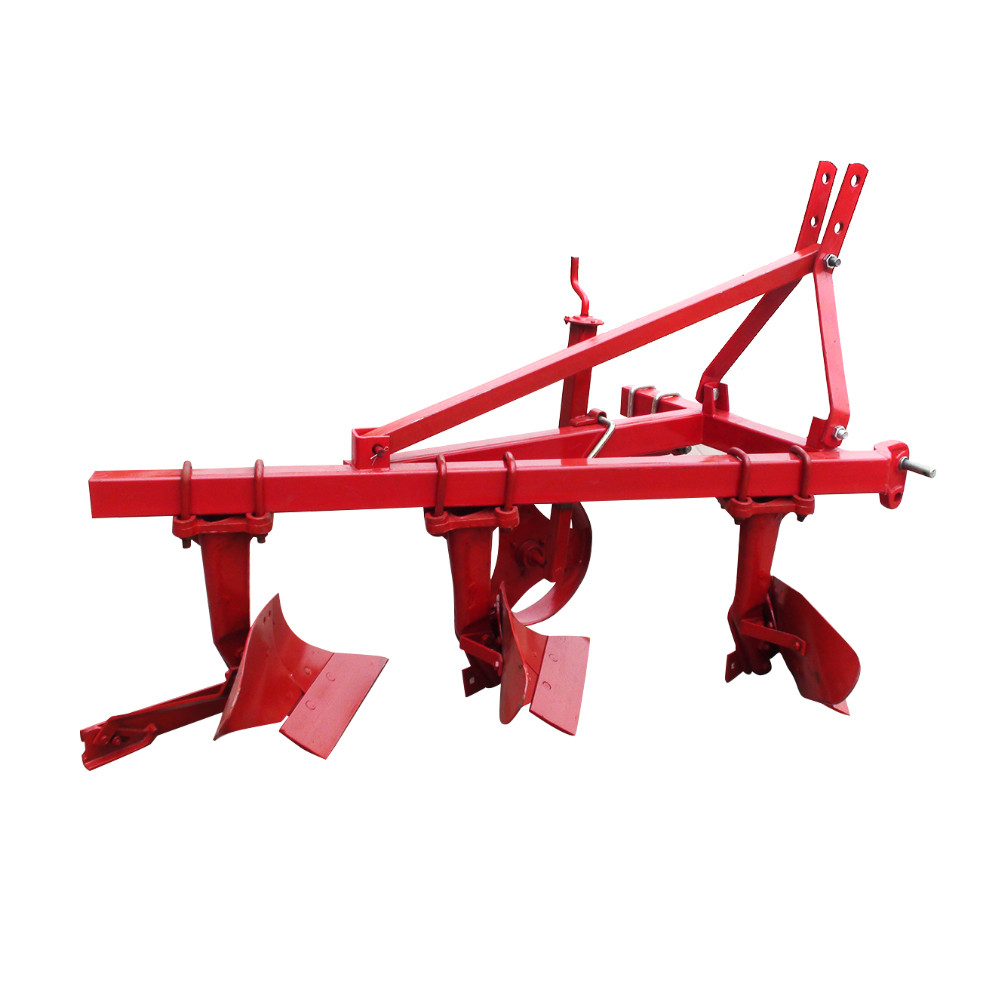

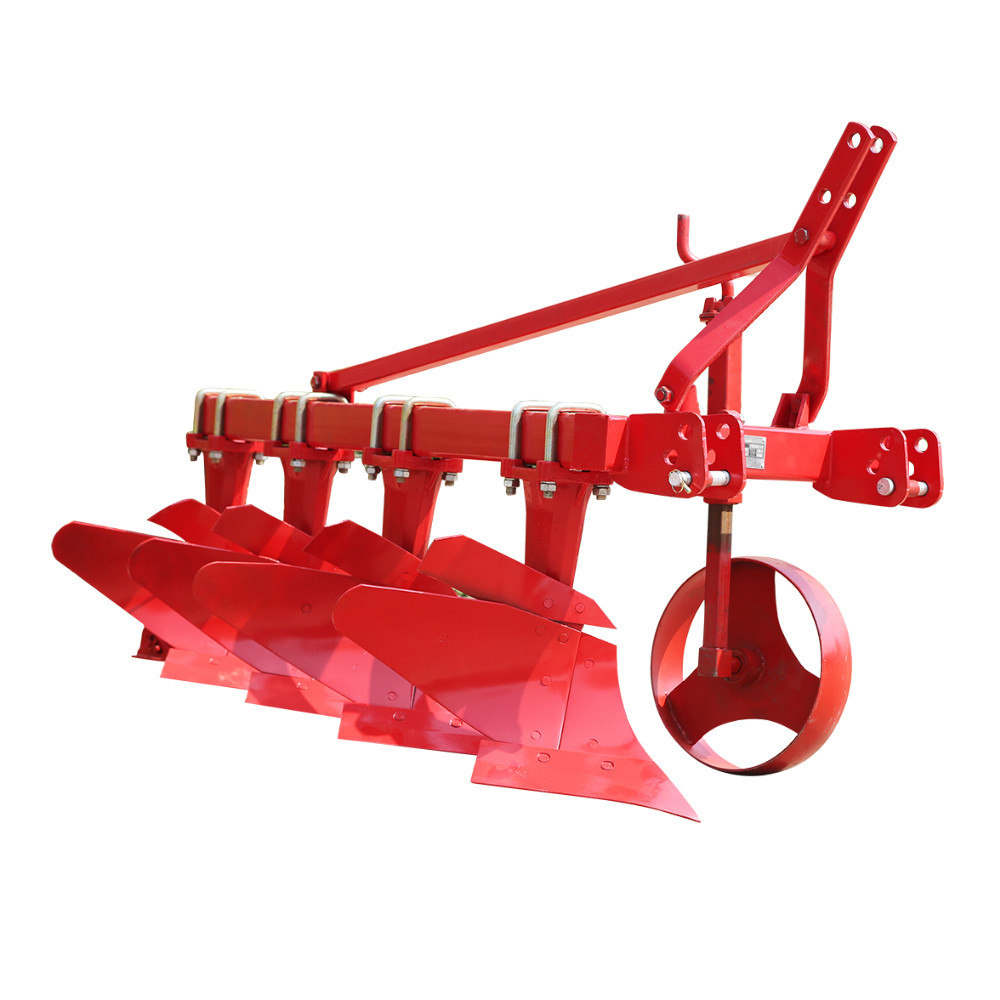

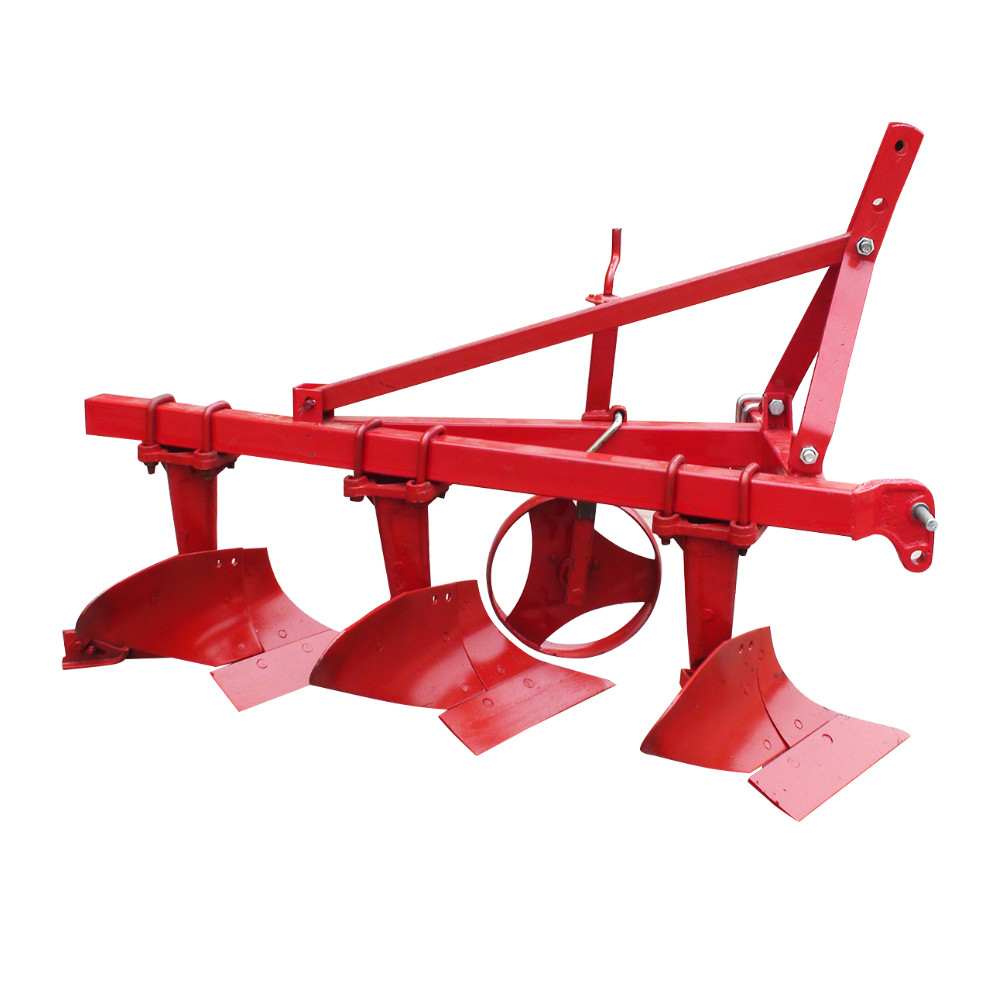

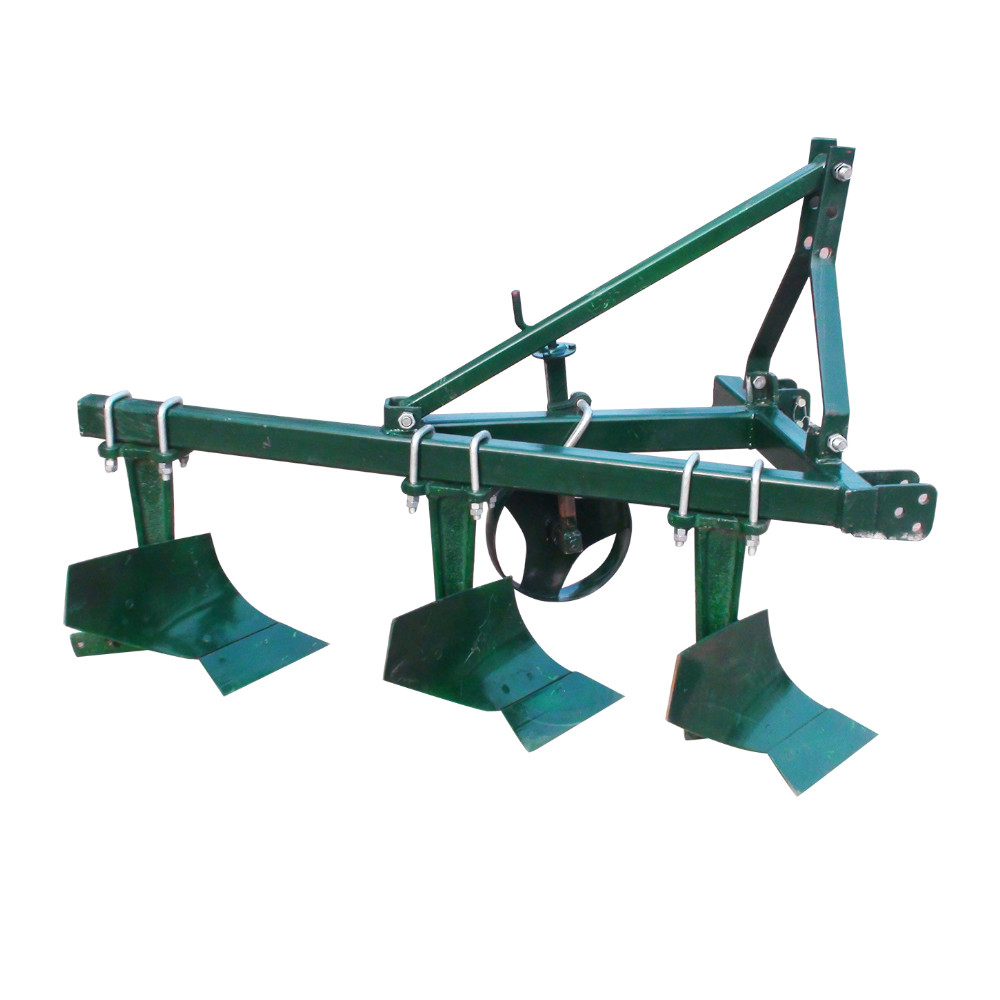

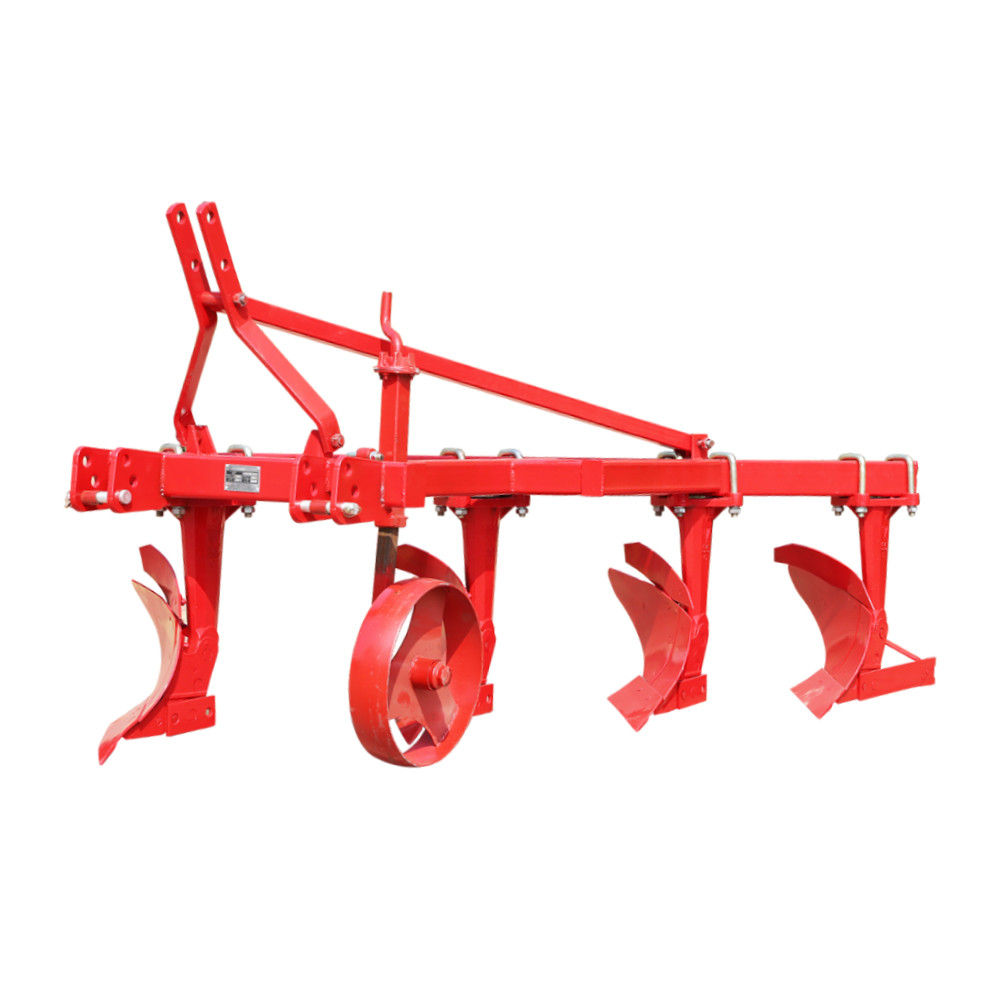

Agricultural implements tractor mounted share plough

Three-point mounted furrow plough, is suitable for dry land farming in sandy loam areas. The plough has the characteristics of a simple structure, flat surface, good work efficiency,  nice performance of broken soil cover, large adaptability range, small moisture ditch and so on. The plough can be divided into fixed-type ploughs, and flip-type plough (1LF). According to the main parameters, can be divided into 20 series, 25 series, 30 series, and 35 series.

It produces the best work, leaving level surface etc. Suitable for loam and sandy loam soils in the cultivated area, the soil-specific resistance: is 0.6-0.9kg/cm^2.  It produces the best work, leaving level surface etc. The plough is also compact in construction, and versatile in application. After ploughing, the furrow is narrow with good pulverization and mulching and the land surface is smooth.

The furrow plough has a wide scope of the specification, the width of the plough share could be 20cm, 25cm, 30cm and 35cm. The material of the plough share is 65Mn spring steel, the material is from Lingyuan and Anshan steel companies, which are the best steel companies in China. The working depth can be adjusted by the depth-limiting wheel.

We can produce all spare parts of the plough, especially the share, customers can replace the share when having some damages conveniently.

Features:

1. Three-point mounted with a 4WD tractor.
2. Single share working width is 25cm, generally, the share quantity can be 2,3,4 and 5, that is working widths 500mm, 750mm, 1000mm and 1250mm, which can satisfy different working demands.
3. The share of the plough is 65Mn spring steel, it is hard enough against hard solids and stones.

Details:

Depth limiting wheel:

The back side of the plough:

The rear side of the plough:

Linkage with a tractor:
