Tractor mounted maize corn seeder soybean planter

The soybean and corn seeder is suitable for 12-120hp four-wheel tractor, sowing lines can be 3-8 lines to meet different needs of different customers.

Product Introduction:

The soybean and corn seeder is suitable for 12-120hp four-wheel tractor, sowing lines can be 3-8 lines to meet different needs of different customers.

This seeder is suitable for sowing corn or soybean in the non-tillage field, which can sow the fertilizer as base manure together with seed at one operation. This spurs the seedling fast and sturdy growing. On the front beam of the machine’s frame, there equipped with a passive entangling-proof fitting (can also used for furrowing). This fitting can cut down the working resistance and improve working efficiency.

The seeder gears are connected by a chain; the bottom is the wheels rolling on the ground. It features uniform sowing and high work efficiency. The seed spacing is stable.

Features:

  1. The seeder can sow soybean or corn seeds and fertilize at one operation.
  2. The row spacing can be adjustable for different field.
  3. Furrow fertilization device uses a precision cast steel shovel point, strength, good abrasion resistance.
  4. Precision metering device is a new variable-speed postures, cast steel shell, the row of kind of high precision, durable to use.
  5. Transmission parts adopts bearing design, with the feature of  small resistance, high precision, not turn off .
  6. Transparent box, avoid inflatable widened tires smooth operation, suppression effect is good.

Parameter:



Model 2BJG-2 2BJG-3 2BJG-4 2BJG-5 2BJG-6
Overall Dimension (mm) 1300x1620x1100 1700x1620x1100 2800x1620x1100 3500x1620x1100 4200x1620x1100
Row Spacing (mm) 500-700
Matched power (hp) 12-20 20-25 30-40 50-80 80-100
Fertilizer  depth (mm) 30-70
Fertilizer coulter boot Furrow coulter boot
Seed coulter boot Moldboard coulter boot
Seeding depth (mm) 30-50


Fertilizer capacity (kg/m u)

90-415
Furrow cover Disc furrow cover
Linkage Mounted three-point linkage
Type of drive Land wheel-transmission
Working speed (km/h) 5-7
Weight (kg) 130 190 260 310 380

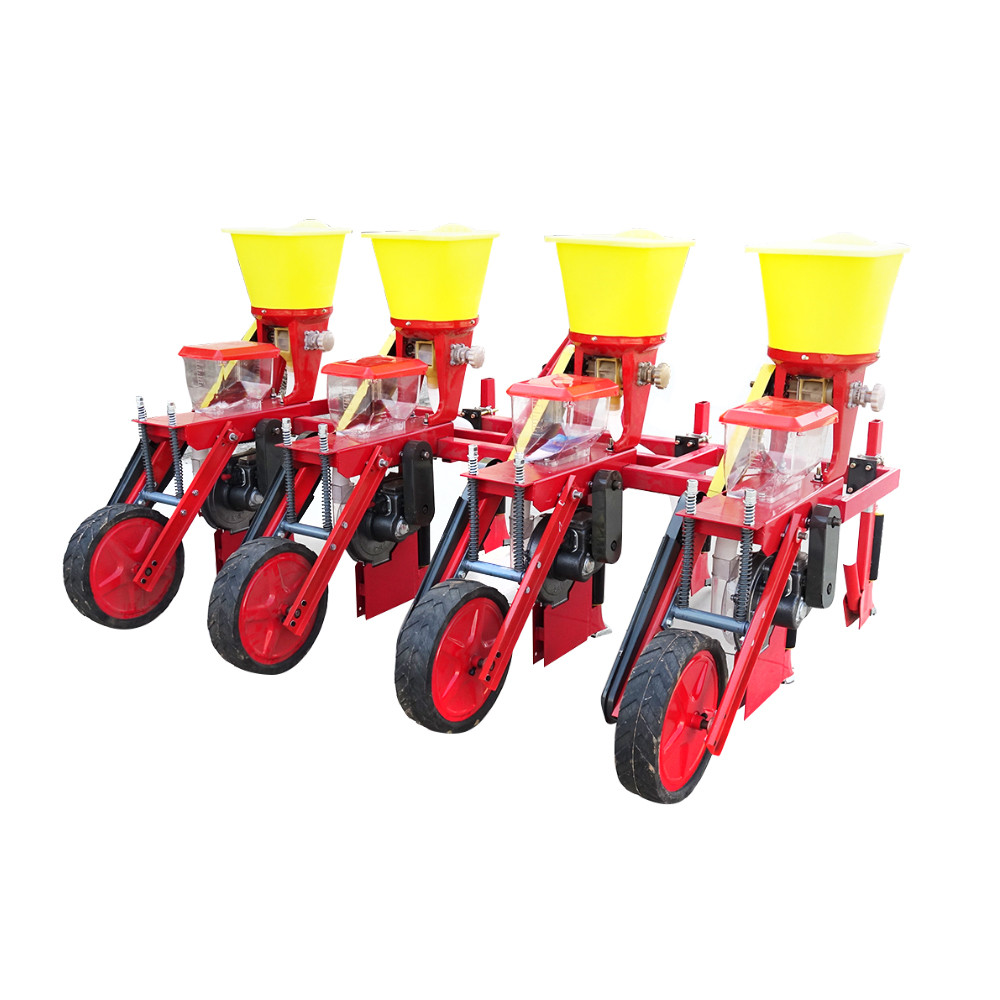

5 rows corn soybean precision seeder 2
5 rows corn soybean precision seeder 2

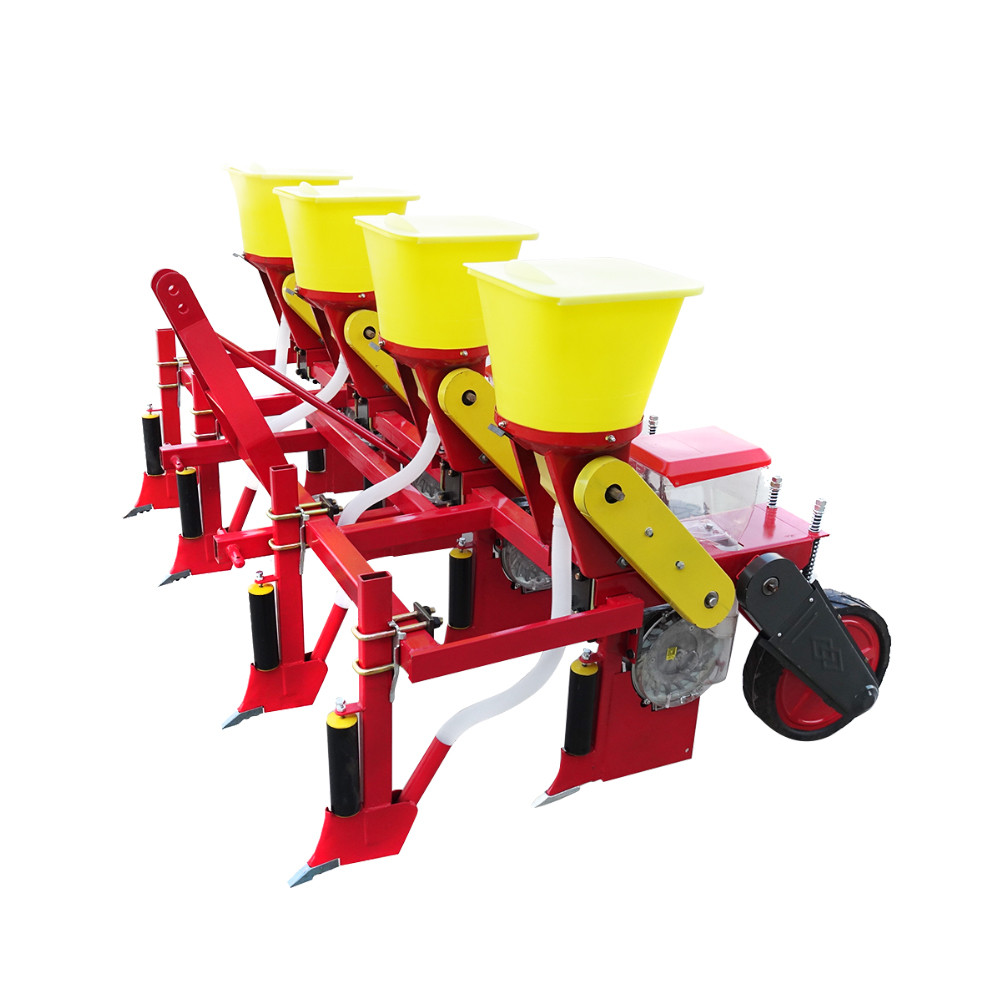

5 rows corn soybean precision seeder 6
5 rows corn soybean precision seeder 6
5 rows corn soybean precision seeder
5 rows corn soybean precision seeder
