Agricultural implements tractor mounted furrow plough

The 1L series plough is a fully suspended plough, which is suitable for dry land farming in sandy loam areas. It has the characteristics of simple structure, large adaptability range for farming, good work quality, flat surface, good performance of broken soil cover, small moisture ditch and so on. Mainly can be divided into fixed type plough, flip type plough (1LF), according to the main parameters, can be divided into 20 series, 25 series, 30 series, 35 series.

The furrow plough is suitable for soil specific resistance: 0.6-0.9kg/cm². It produces the best work, leaving level surface etc. The share plough is suitable for loam, or sandy loam soils in the cultivated area. It is compact in construction, and versatile in application. After plowing, the land surface is smooth and the furrow is narrow with a good pulverization and mulching.

The furrow plough is with simple structure, and easy to be adjusted, but have good efficiency. This plough has wide scope of specification, the width of plow share could be 20cm, 25cm, 30cm and 35cm. The material of plough share is 65Mn spring steel, which is hard enough. The working depth can be adjusted by the depth limiting wheel.

We can supply all spare parts of the plough, especially of the share, we produce by ourselves,  customers can replace the share when have some damages.

Features:

1. Three point linkage with 4-WD tractor.
2. Generally the share quantity can be 2,3,4 and 5, which can satisfy different demand.
3. The share of plough is 65Mn spring steel, the material is from Lingyuan and Anshan steel company, which are the best steel companies in China. And it is hard enough against hard solid and stones.

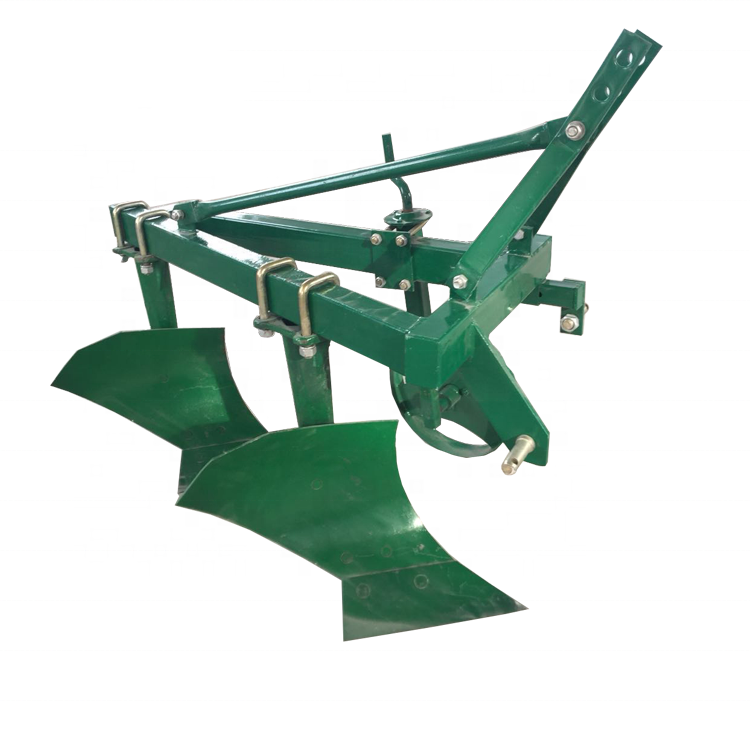

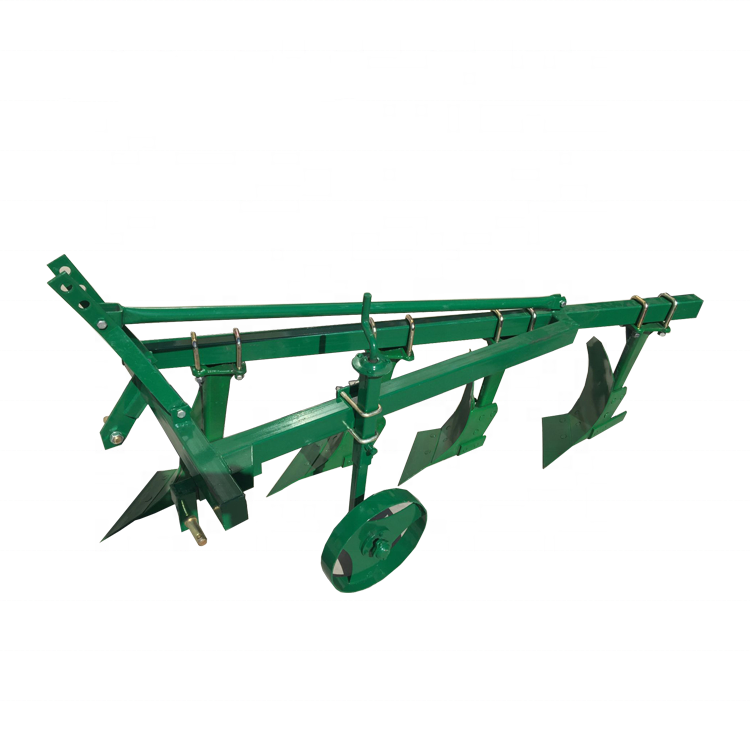

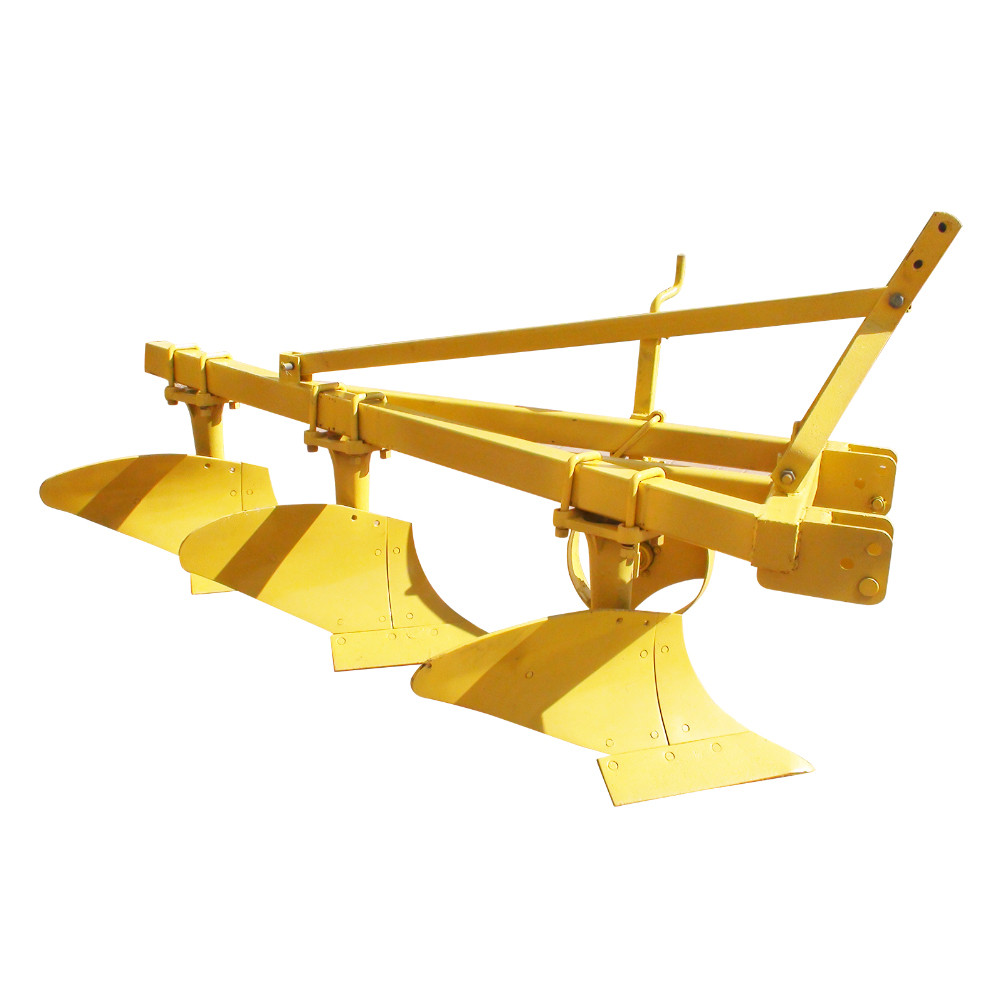

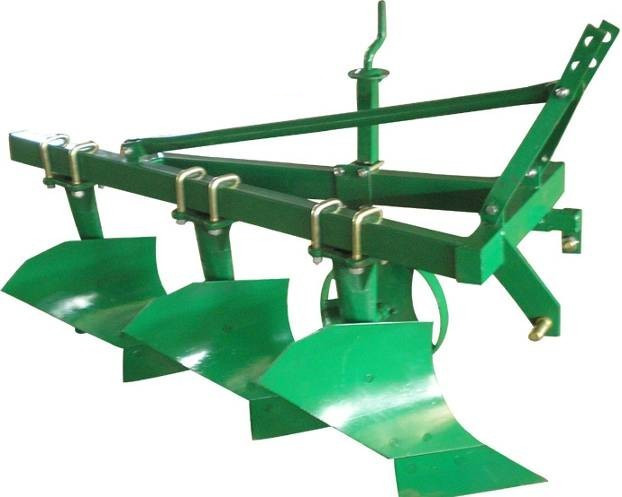

   Model	1L-220	1L-320	1L-420	1L-520
   Working width (mm)	400	600	800	1000
   Working depth (mm)	180-250
   No. Of share	2	3	4	5
   Weight (kg)	60	100	155	180
   Linkage	Three point mounted
